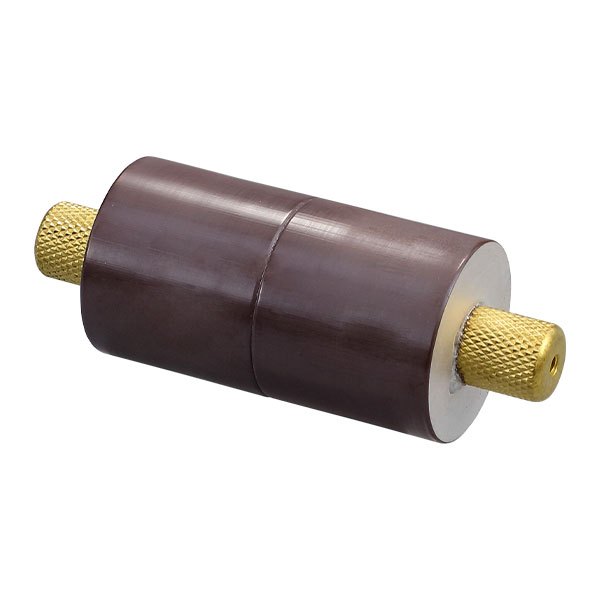

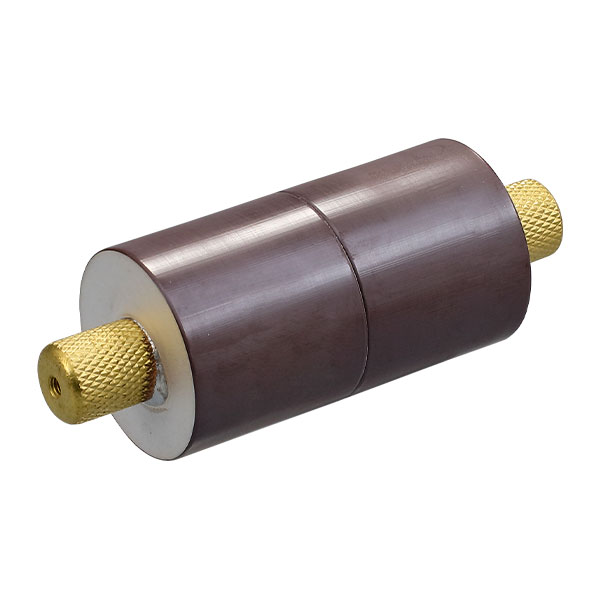

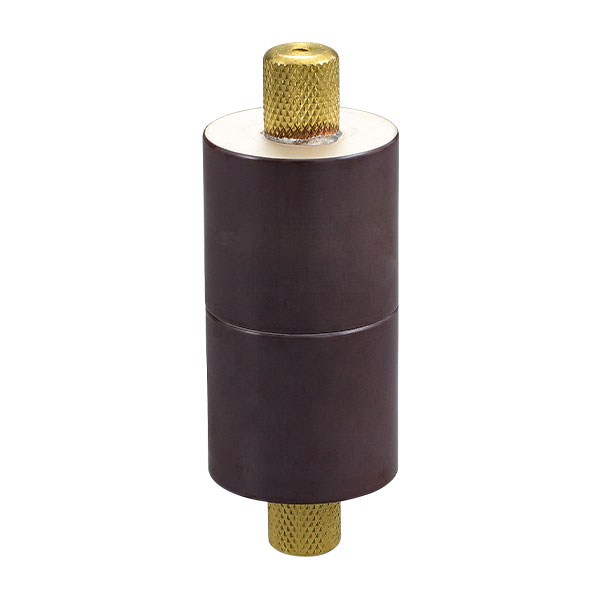

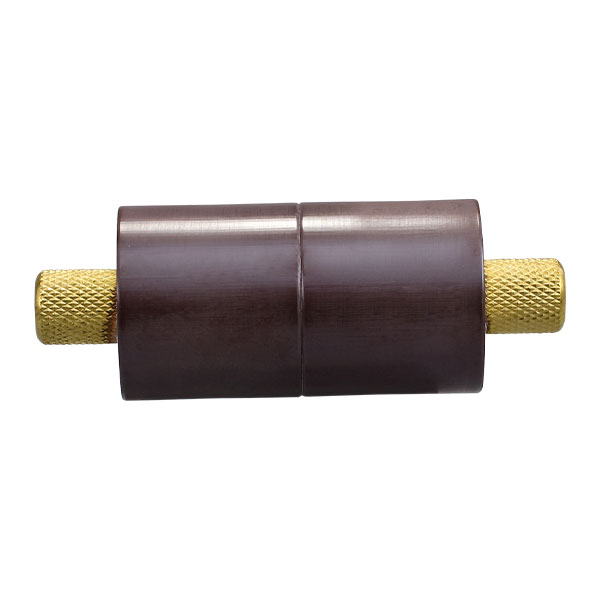

Name: 24KV primary and secondary fusion main capacitor

Capacitance: 100PF±10%

Voltage divider ratio zero sequence: (24KV/√3/6.5/3)

Accuracy class: 3P (-40℃~+70℃)

Insulation class: 24/65/145KV working voltage/power frequency withstand voltage/lightning impact

Partial discharge: <3PC 14.4KV

Size: Ф30±1mm Length 85±2mm

Scope of application: circuit breakers on primary and secondary fusion columns
